With the help of new clamp fixator and drill guide device, using the SOP-LC system is
now “child’s play”

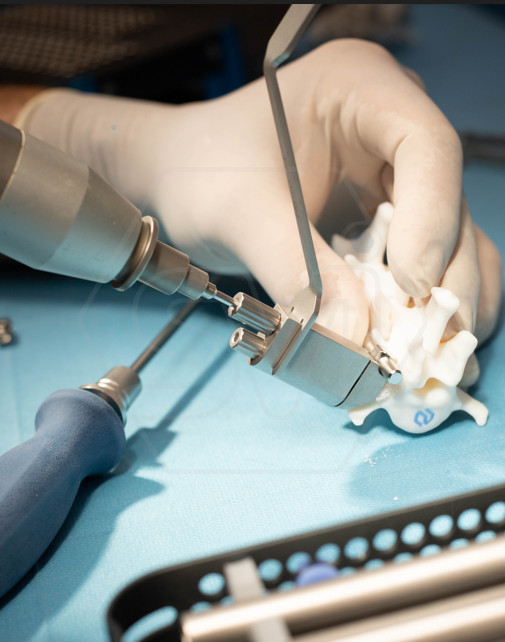

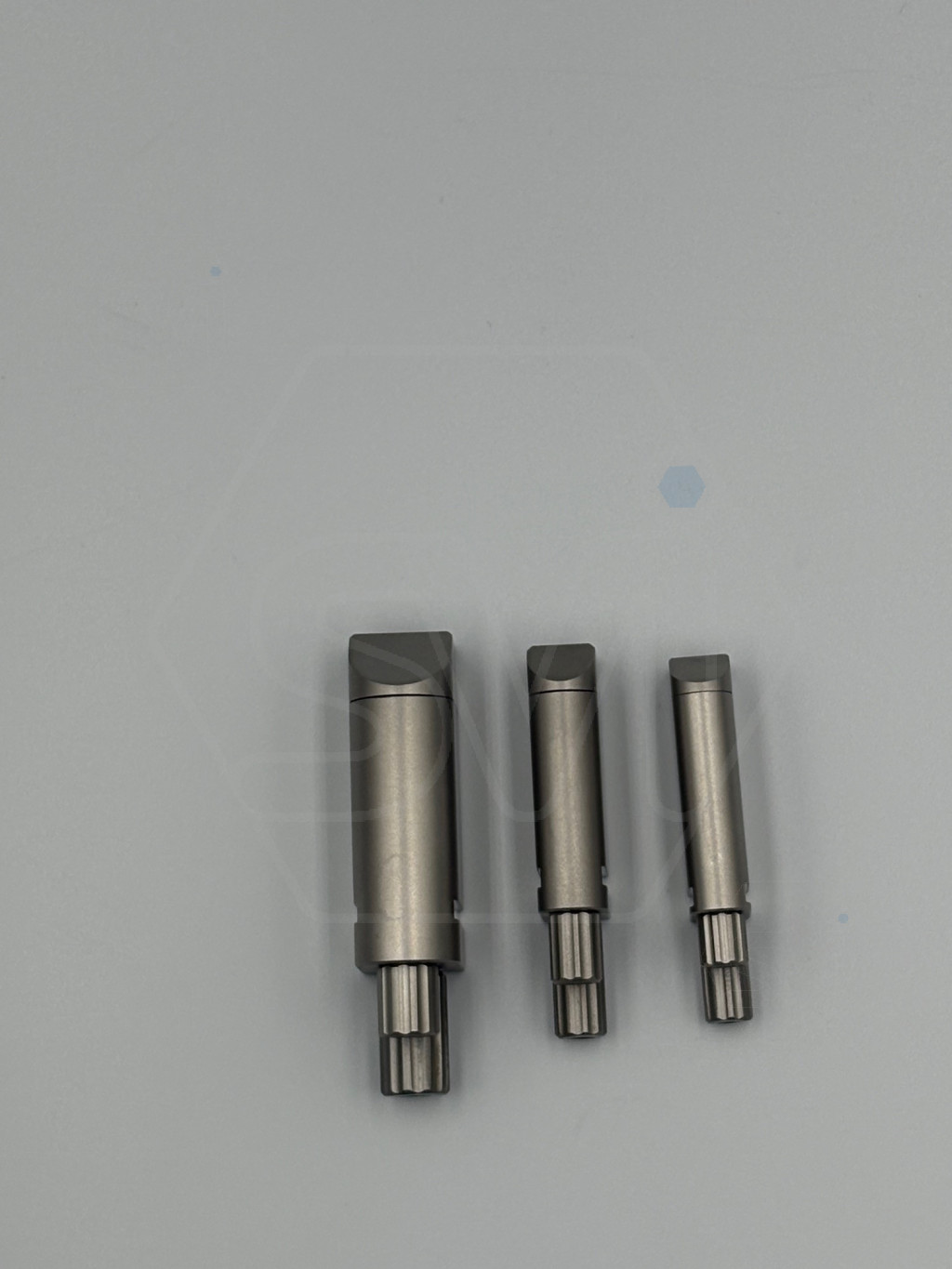

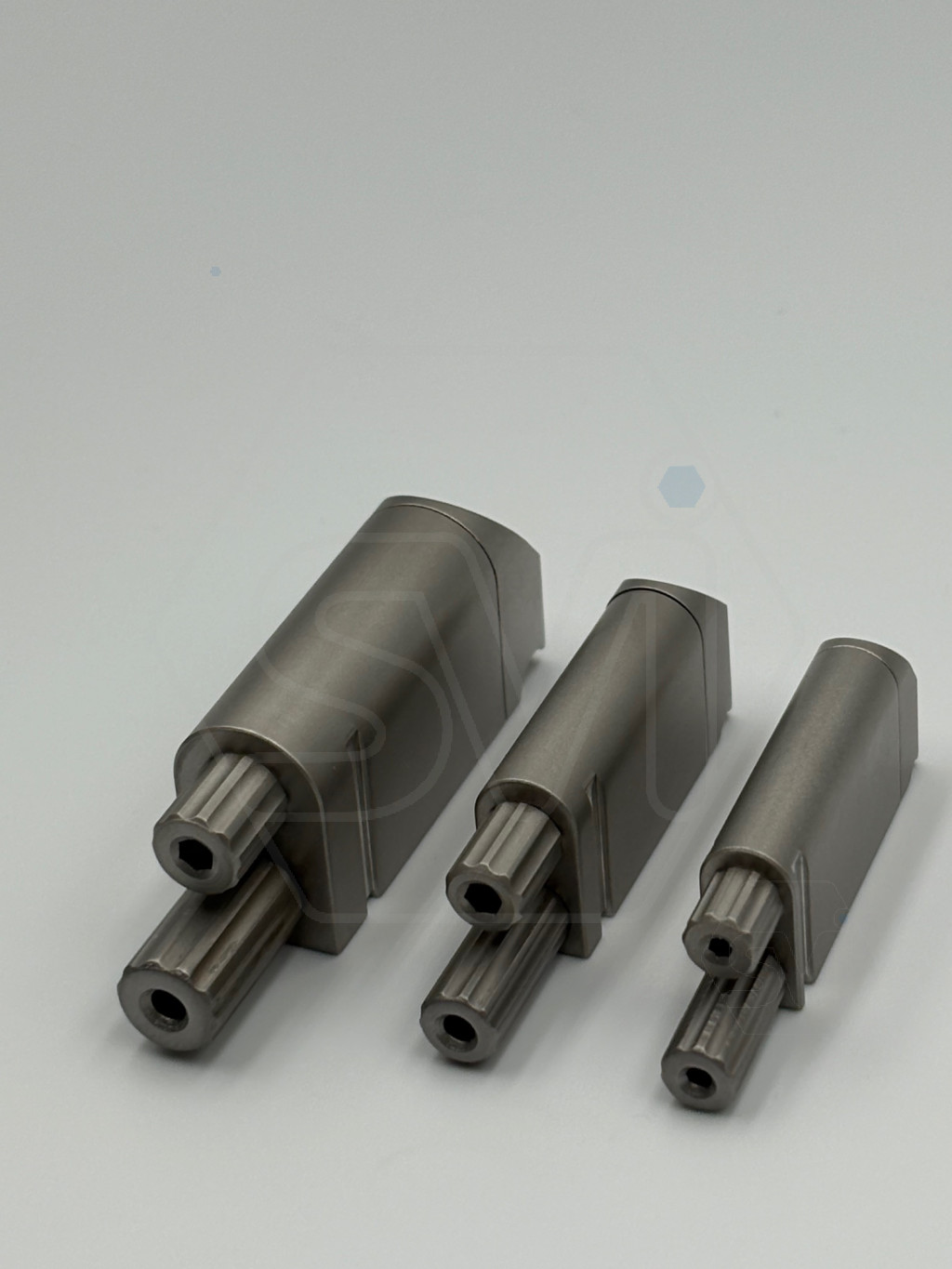

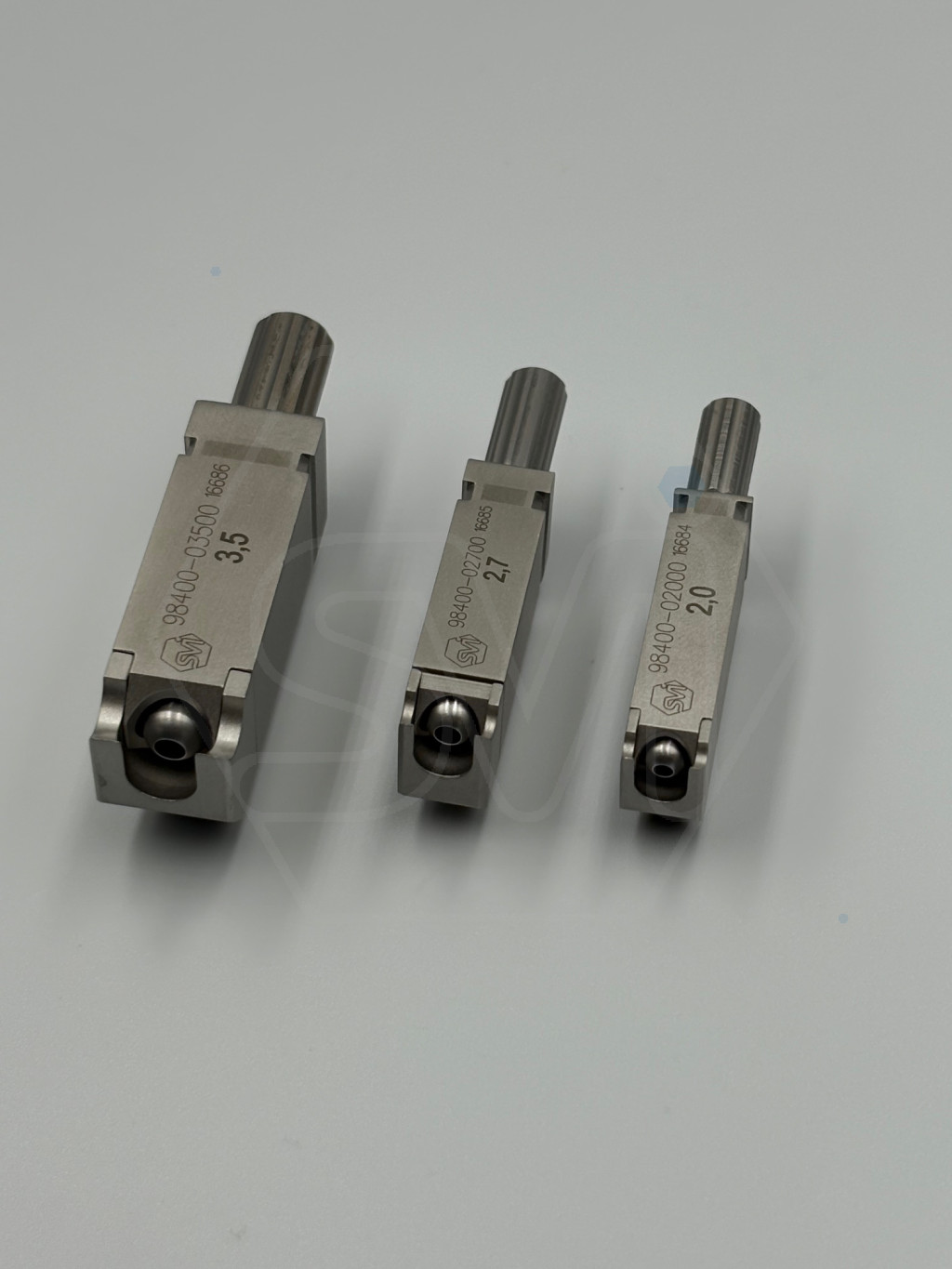

A device which was created to facilitate the use of the SOP-LC system, which temporarily
fixes the clamp until the hole is drilled and the screw is inserted. For locking stability, it is
important that the clamp doesn’t move during insertion, and the hole in the clamp and the
drilled channel in the bone remain in one axis.
• Place the device and secure it with the shorter screw. The screw can be fixed with a
hex screwdriver, (AO compatible)
• In the partially fixed position (not fully tightened screw), the desired position of the
clamp can be adjusted, then the fixing screw must be fully tightened
• The drill guide sleeve must also be tightened
• The hole can be prepared
• The length of the device must be taken into account when measuring the depth
• The drill guide sleeve must be removed from the device
• The screw can be inserted in place of the drill guide sleeve. It can be used with a self-
tapping, AO screw.
• The screw must be fully tightened to achieve secure stability (over 3.0 Nm)
• The device can be easily removed by loosening the fixing screw
More information: office@smartvetimplants.com
SOP-LC in the literature: Vet Comp Orthop Traumatol 2024;37:163-172
